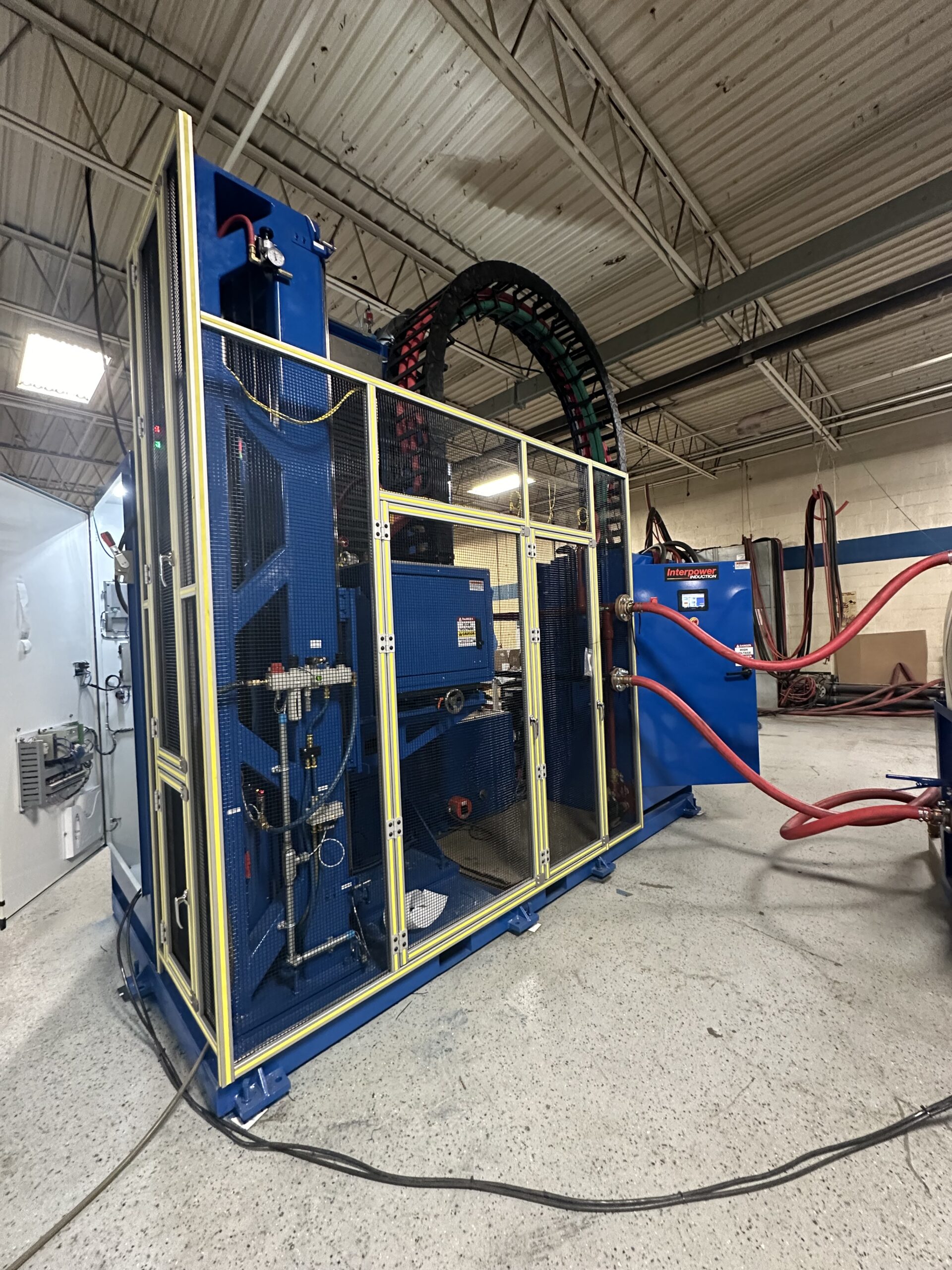

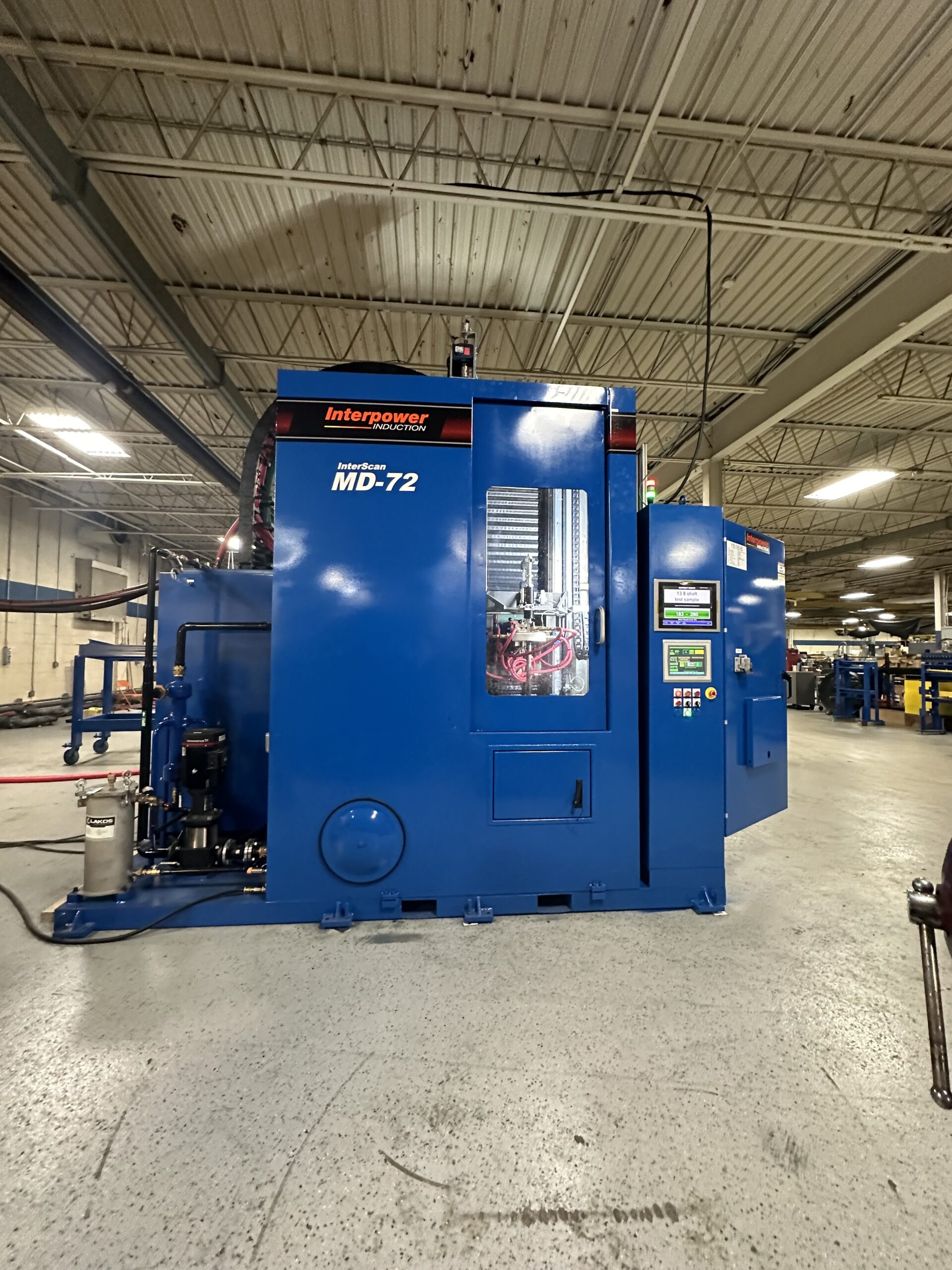

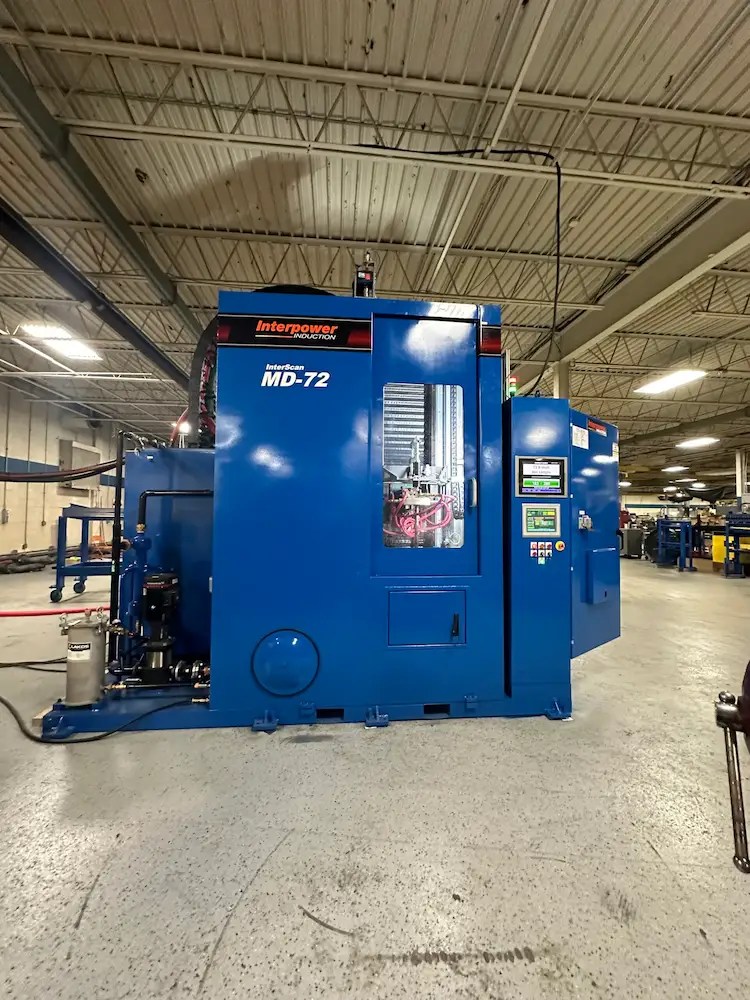

Heat Treat Scanners
General Information
Heat Treat Scanner Features

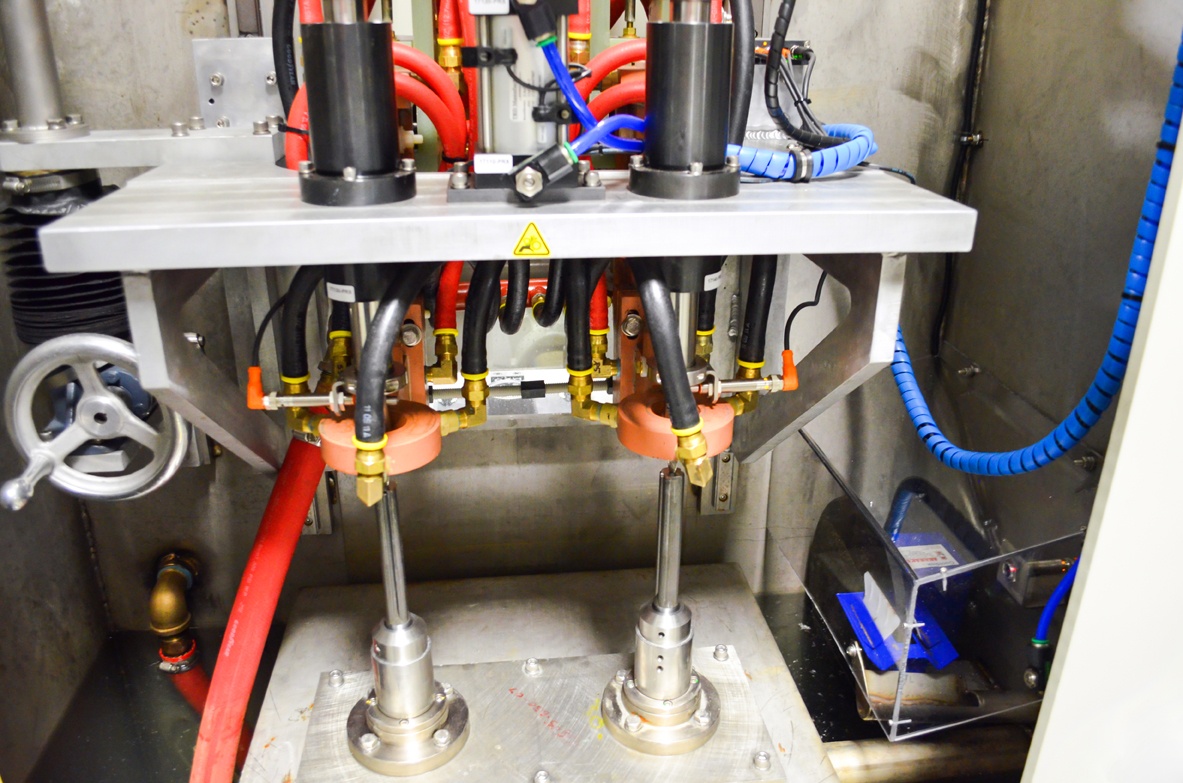

- Dual or single spindle
- Weight capacities up to 500 lb.
- Lengths up to 120″
- Stainless steel quench tank

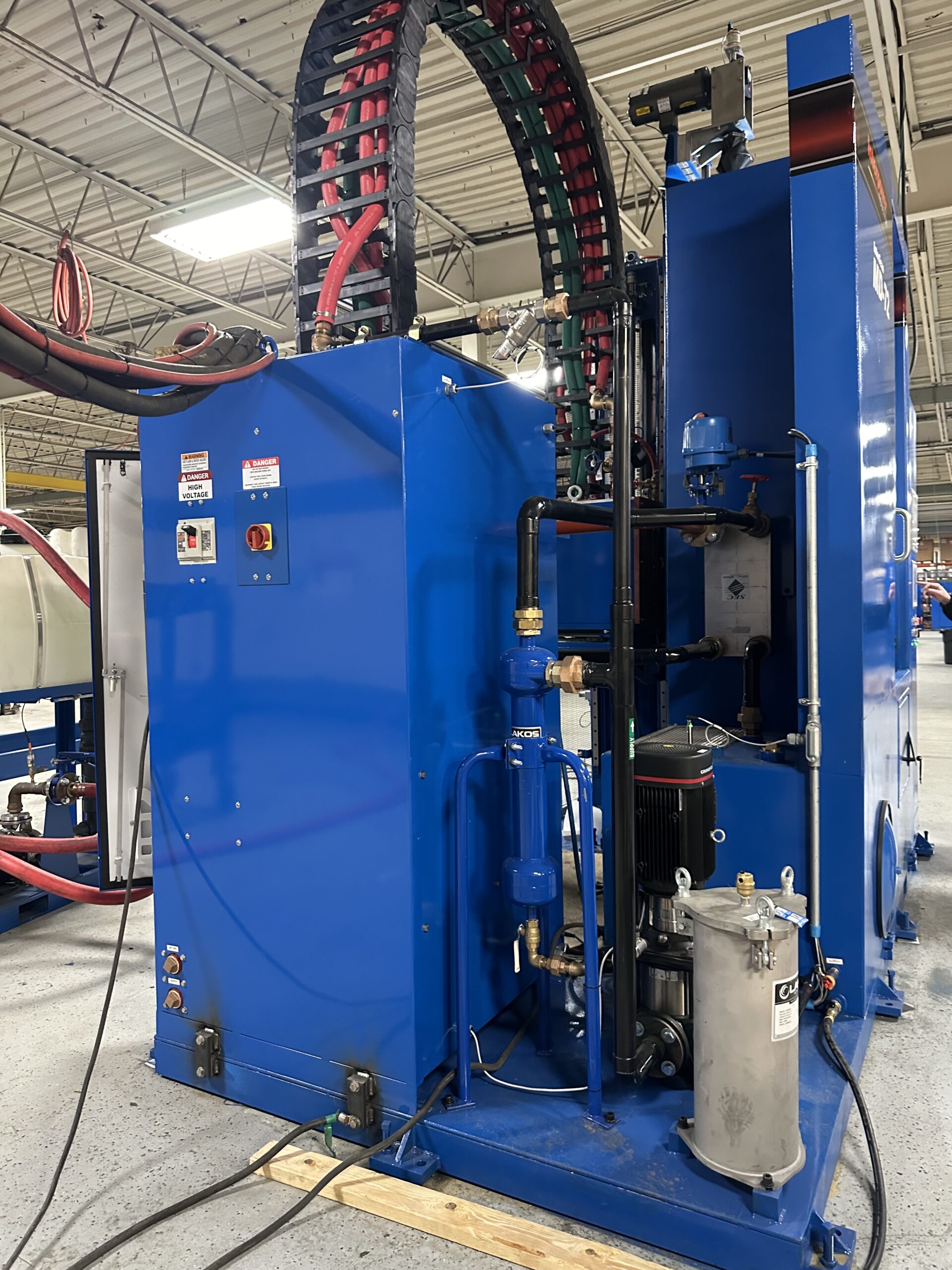

- Quench filtration system
- Color monitor with AB servo drive and PLC package
- Part rotation via sealed bearing assembly in stainless steel compartment
- Power and frequency combinations are customized

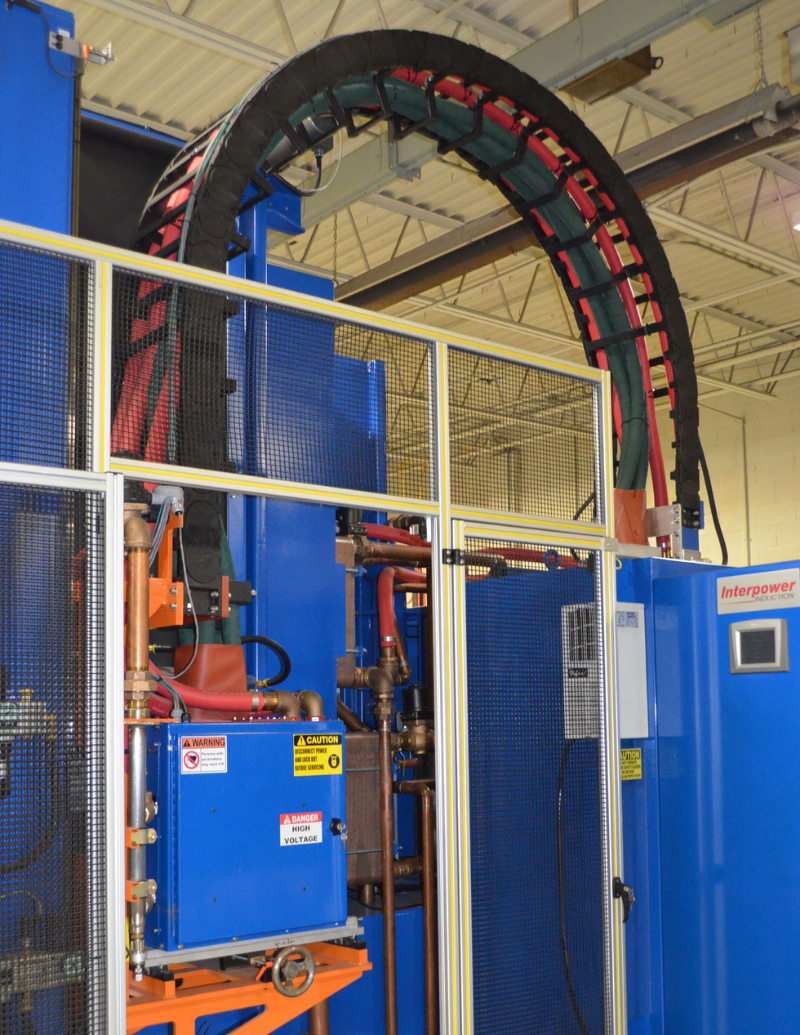

- Moving coils and transformer assembly are outboard of quench tank allowing for easy maintenance

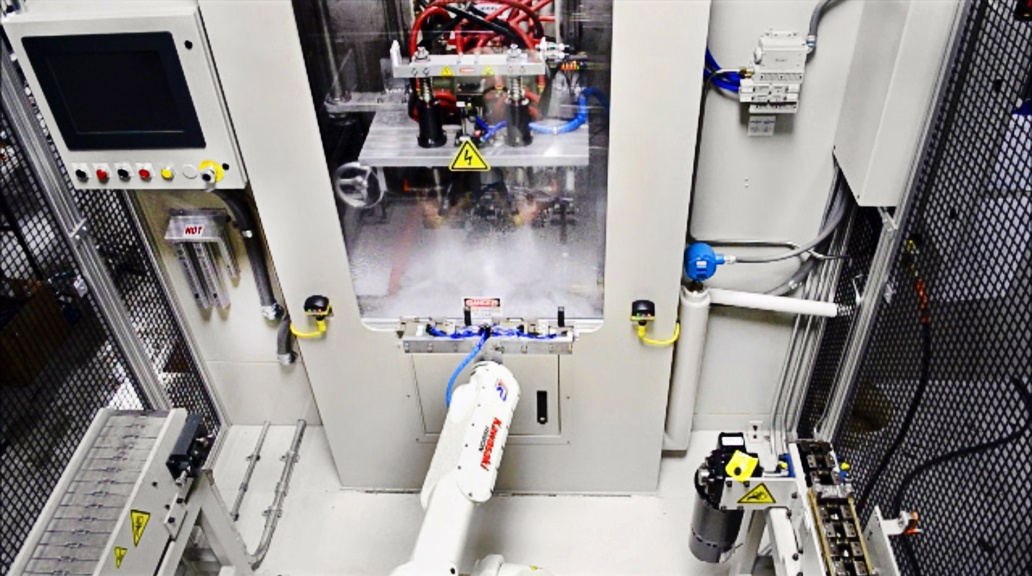

- Interfaces that can be added: robots, air operated centers, recipe driven upper centers, high pressure pumps
- Sign-Link signature monitor measures energy into the part, current, quench flow, quench temperature, quench pressure, scanner speed, part rotation confirmation with storage for hundreds of recipes
All interconnecting plumbing and wiring is completed and tested prior to shipment. Only simple, water in/out and power connections need to be made at your plant for installation. Interpower scanners offer superior performance at competitive prices.
